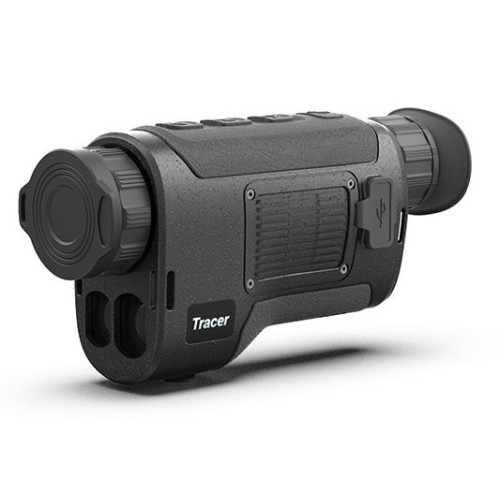

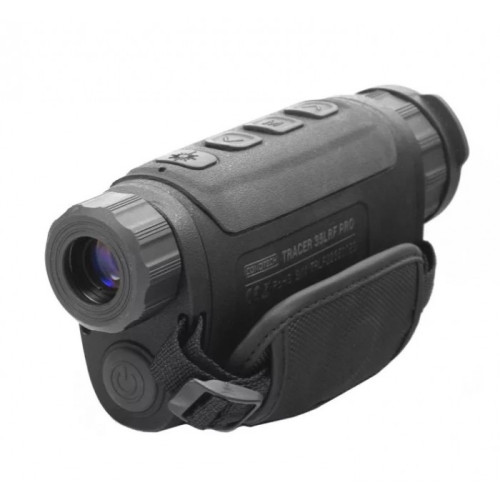

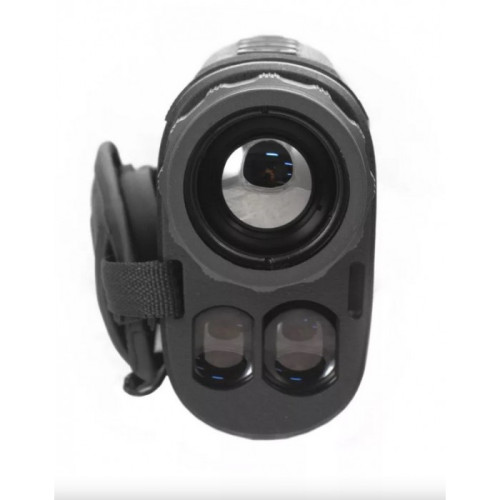

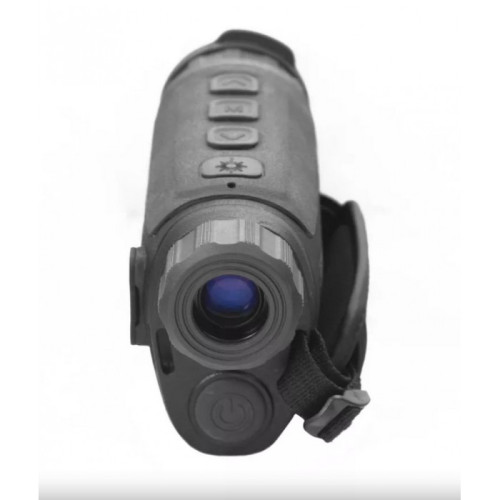

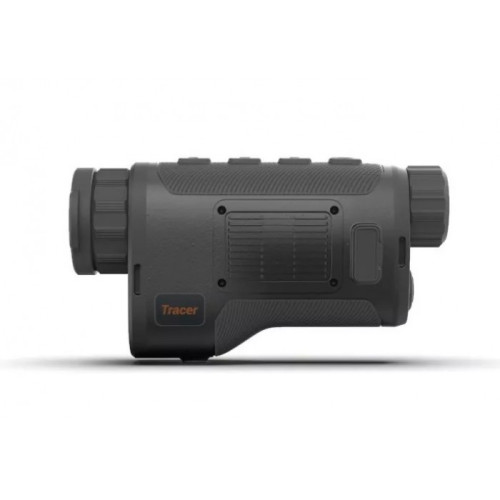

Thermal monocular Cono Tech Tracer 35LRF Pro (35 mm, 384х288, 2480 m)

Article: 80132
Out of stock

Thermal imaging monocular with a rangefinder CONO Tracer 35 LRF Pro is suitable for night and day observations with photo or video recording of events. The highly sensitive 384x288 Vox thermal imaging sensor with a NETD of 25 mK will detect the target despite snow, dust, smoke, fog and other atmospheric phenomena.

71 440

Product description

Tracer LRF thermal imagers are equipped with a built-in laser rangefinder with a range of up to 1000 m and measurement accuracy of ± 1 m. High sensitive thermal image Vox sensor with NETD 25mK allows you to detect targets by cutting through snow, dust, smoke, fog, haze, and other atmospheric obscurants.They can be used in various applications including hunting, observation, security, terrain orientation, search and rescue operations, etc.

Ergonomic design


Tracer series has rugged, yet lightweight housing. It perfectly fits into user’s hand. Small weight of the monocular makes it a wonderful option for long outdoor trips when light yet capable unit is necessary.

High sensitive thermal image sensor

The units have high sensitive 25mK NETD thermal imaging sensor. This provides Tracer with the wonderful detail recognition even when the thermal contrast of the surroundings is low - during the snow, dust, smoke, fog, haze, and other atmospheric obscurants.

Built-in laser rangefinder


Tracer is capable of accurately measuring distance to objects up to 1,000 meters away.Wavelength: 905 nm. Max. measuring range: 1000 m. Measurement accuracy :± 1m. (Safety class for laser equipment according to IEC 60825-1:2014: 1)

IP67


IP67 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.
Detection Range


A powerful F25/1.0,F35 /1.1 or F50/1.1 objective lens combined with a 384x288@12µm highly-sensitive thermal imaging sensor provides exceptional detection capabilities.

Multiple palette


Wifi and on-board recording


Built-in Wi-Fi module allows you to connect the Tracer with mobile units which enables you to receive footage in the real-time mode and save the image/video captured by the device. 32Gb of internal memory provides enough space for recording and taking photos of exciting moments.

Characteristics

Microbolometer

Type of sensor Vox
Resolution, pix 384х288
Pixel size, mkm 12
Frame refresh rate, Hz 50
NETD, mK ≤25

Optical

Objective, mm 35
Optical magnification, x 3.3
Digital magnification, x 1/2/4
Range of detection, m 2480
Range of recognation, m 826
Type of display OLED
Display resolution, px 1024x768
Sight, ° 7.5×5.7
Diopter adjustment -5 ... +4
Distance of the exit pupil, mm 25

Power supply

Type of power cells Lithium
Working time, hours 8

Additional features

Photo and video recording Yes
Wi Fi Yes
Laser rangefinder
Range of LRF's detection, m 1000

Physical

Weight, g 540
Dimensions, mm 155x50x92
Protection class IP67
Operating temperature, °C -20 ... +50
Country of manufacture Китай
Warranty, month 24
